1st – 13th February – Cabane Attach (Top) – Time 4 hours
Time flies. Still going on the spar attach brackets and all of their components. This month I hope to put the bends in the ends – the 6.5 degree sweepback. Must get some pics up to show progress.

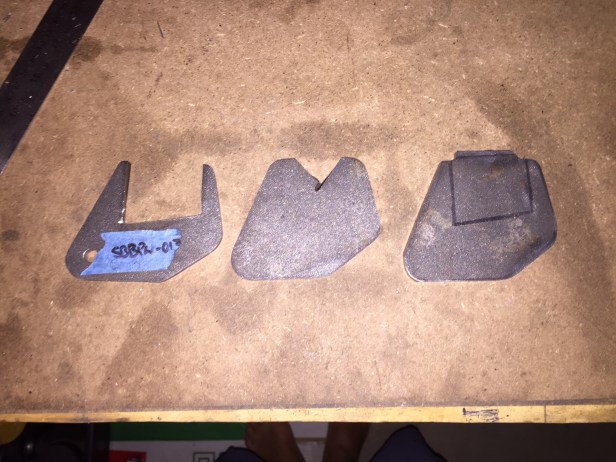

I have to make four of these…. here is the progress. These are the cabane attach brackets that sit in the underside of the Top Centre Wing Spar Attach Brackets. They get welded on the underside of the spar. You can’t see it but the brackets have two bolt holes, one for the cabane strut and one for the tie rod in the cabane.
A Steen Skybolt
