This is the start of the top wing centre section. It is also the start of me working with 4130 ChromeMoly Steel. Man this stuff is tough. Anyway here we go.

10th September 2015  .5 hours

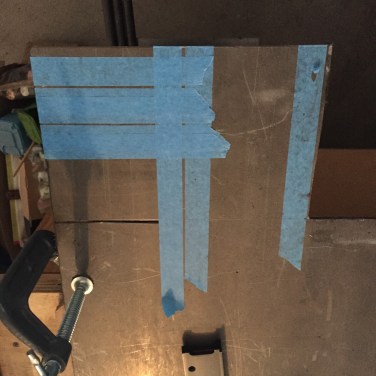

Started to cut out the metal from the sheet for the front spar attach brackets. This looks like the most time consuming components of the centre section.

IMG_1127



11th September 2015 – 0.2 hours

More work on the bracket… figured out how to cut and shape them now. Grinder is going great though I get a sense I am consuming the wheel itself too.



22nd September 2015 – Bracket cutting and outside forming .5 hours



A pic on the progress. The left side I have the right sized blank. One on the left have the shape finished, filed smooth and holes marked and punched
